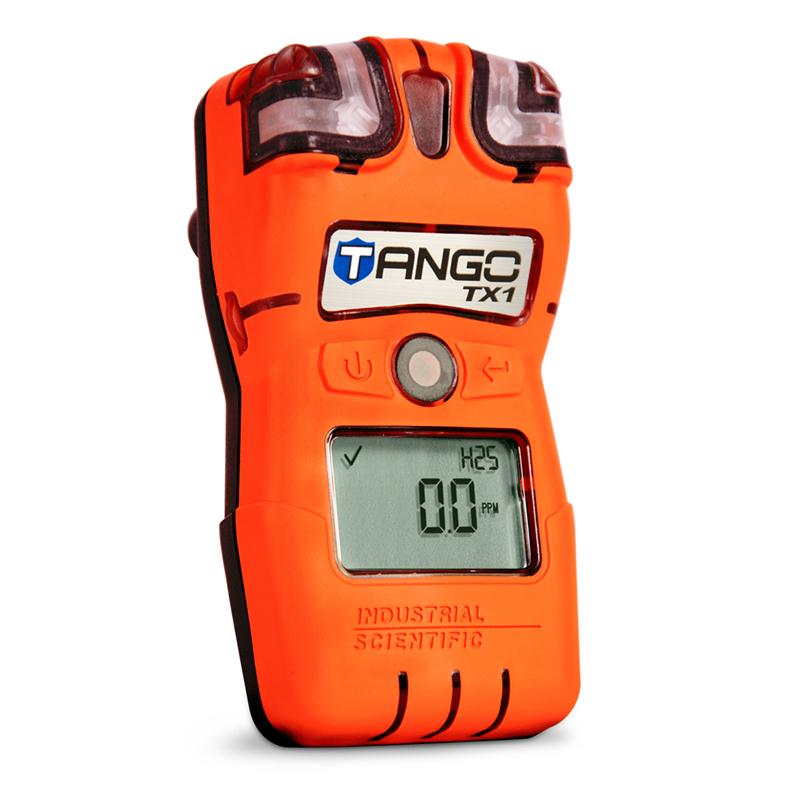

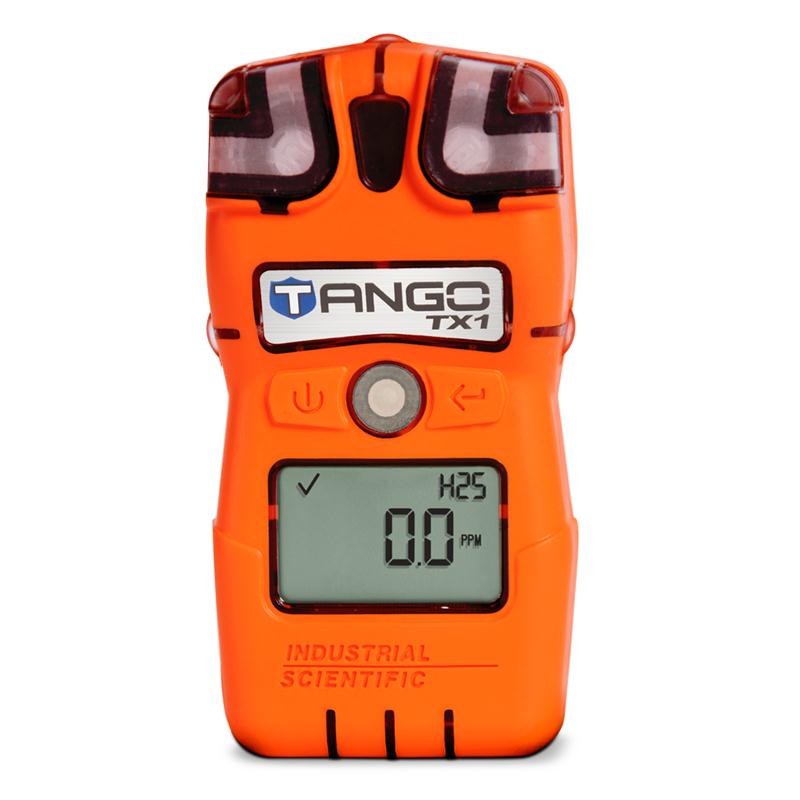

Máy dò khí Industrial Scientific Tango TX1
|
|
INSTRUMENT WARRANTY:
Three-year warranty which does not include battery, sensors and filters.
CO and H2S sensors are warranted for 3 years from the initial purchase date.
All other sensors are warranted for 2 years from the initial purchase date.
|
|
DISPLAY:
Segment liquid crystal display (LCD)
|
|
KEYPAD:
Two buttons
|
|
CASE MATERIALS:
Case top: Polycarbonate with a protective rubber overmold
Case bottom: Conductive polycarbonate
|
|
ALARMS:
Three strobe-emitting visual alarm LEDs (two red; one blue);
100 decibel (dB) audible alarm at a distance of 10 cm (3.94″); Vibration alarm
|
|
DIMENSIONS:
99 x 51 x 35 mm (3.9″ x 2.0″ x 1.4″)
|
|
WEIGHT:
126.0 g (4.4 oz.)
|
|
OPERATING TEMPERATURE RANGE:
-40°C to +50°C (-40°F to +122°F)
|
|
OPERATING HUMIDITY RANGE:
15%-95% Non-condensing (continuous)
|
|
INGRESS PROTECTION:
IP66; IP67
|
|
SENSORS:
CO, H2S, NO2, SO2, CO/H 2 low – Electrochemical sensor technology
|
|
SENSOR MEASURING RANGES:
Carbon Monoxide (CO): 1 to 1,000 ppm in 1 ppm increments
Hydrogen Sulfide (H2S): 0.0 to 200.0 ppm in 0.1 ppm increments
Nitrogen Dioxide (NO2): 0.0 to 150.0 ppm in 0.1 ppm increments
Sulfur Dioxide (SO2): 0.0 to 150.0 ppm in 0.1 ppm increments
Carbon Monoxide (CO/H2 low): 0.0 to 1,000.0 ppm in 1 ppm increments
|
|
BATTERY PACK:
3.6 V Primary lithium-thionyl chloride (Li-SOCl2), 1.5AH, 2/3AA, replaceable, nonrechargeable
|
|
CERTIFICATIONS:
-40°C TO +50°C (-40°F TO +122°F)
|
ATEX
|
Ex ia I Ma
Ex ia IIC T4 Ga
Equipment Group and Category: I M1 and II 1G
|
|
IECEx
|
Ex ia I Ma
Ex ia IIC T4 Ga
|
|
UL (C-US)
|
Class I, Groups A, B, C, and D; Class II, Groups E, F, and G; T4; Exia
Class I, Zone 0, AEx ia IIC T4
|
-20°C TO +50°C (-4°F TO +122°F)
|
CSA
|
Ex ia IIC; Class I, Groups A B C D; T4
|
|
China Ex
|
Ex ia IIC T4 Ga
|
|
INMETRO
|
Ex ia IIC T4; Zone 0
|
PENDING:
|
MSHA
|
Permissible Gas Monitor
|
|
KOSHA
|
Ex ia IIC T4 Ga
|
|
China MA
|
Safety Certificate of Approval for Mining Products
|
|
|
